SERIES TR9

FIXED SHREDDER FOR PRUNING AND GRASS

The TR9 series includes all fixed shredders for pruning and grass, particularly suitable for cleaning the lanes of vineyards and fruit-farms. They can chop even big-size remains of pruning, as well as grass, brushwood, brambles, etc. and allow to achieve a finely cut and scraped rest also by starting from hard or resinous woods. On request, they can be equipped with lane mower wheel.

  • CE safety device
  • Double cover
  • Oil quenched running wheel in gearbox
  • Smooth hammers
  • Removable Counter Hammers
  • Support leg
  • Selfcleaning rear roll with three set-up positions
  • Openable front door for the only maintenance
  • Double-line of front safety flags
  • Power take-off P.T.O.540 rpm
  • 3 – belt
  • Jags for wood collection
  • Cardan joint
  • Blades in place of smooth hammers
  • Hammers (T02284) and smooth hammers (T01123) model TR10/TR10V, complete with reinforced rotor and counter hammers
  • 2 point linkage bracket
  • Inter-row mower (Page 26)
  • Hydraulic mower wheel, wind-up mechanical shift (Page 28)
  • Hydraulic mower wheel with hydraulic sensing lever (Page 30)
  • 2 saddles
  • 2 fixed iron wheels in place of the roll
  • 2 fixed rubber wheels in place of the roll
  • 2 steering iron wheels in place of the roll
  • 2 steering rubber wheels in place of the roll
loghetto rosso

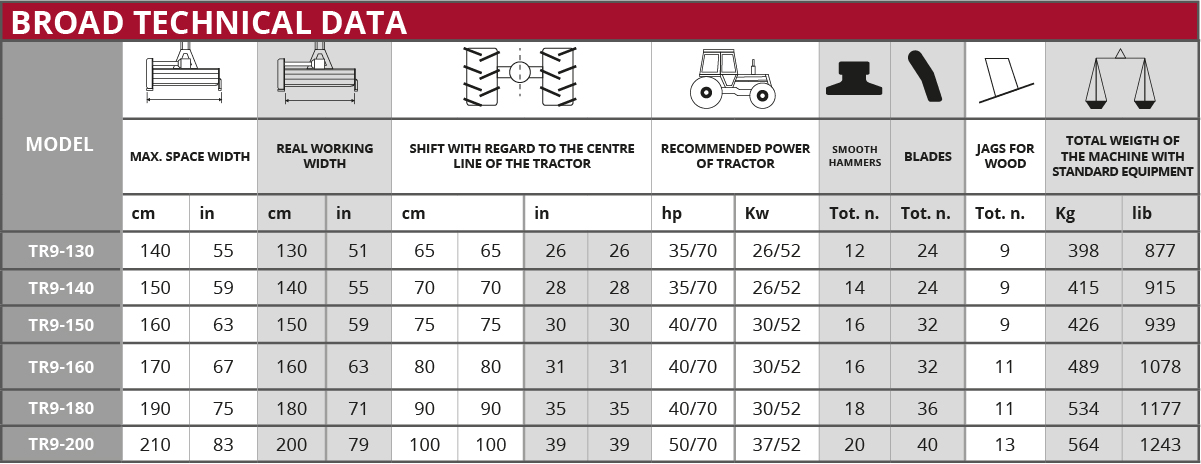

BROAD TECHNICAL DATA:
